M12 D-coded Connector Introduction and Appliaction

Author : Arbyter Qing

Update time : 2025-09-08 14:42:58

An M12 D-coded connector is a circular connector in the M12 family that is specifically designed for Industrial Ethernet applications. The “D-coding” refers to the keyway and pin layout that ensures correct mating and prevents mismatching with other M12 coding types (like A, B, X, etc.).

Key Features of M12 D-Coded Connectors:

1. Pin Count:

Typically 4 pins (for Ethernet: 2 pairs for data transmission).

Sometimes 5 pins (with an additional functional ground).

2. Data Transmission:

Supports Fast Ethernet (up to 100 Mbit/s).

Optimized for twisted-pair Ethernet wiring (Cat 5e equivalent).

3. Keying & Safety:

The D-shaped key prevents mismating with A-coded (sensor) or B-coded (fieldbus) connectors.

Ensures the connector is only used for Ethernet/data applications.

4. Environmental Protection:

Usually rated IP67/IP68, making them dust-tight and waterproof.

Rugged, vibration-proof, and suitable for harsh industrial environments.

Applications of M12 D-Coded Connectors:

Industrial Ethernet Networks (EtherNet/IP, PROFINET, EtherCAT).

Factory Automation: connecting PLCs, controllers, and Ethernet switches.

Robotics and Machinery: for reliable Ethernet communication in moving equipment.

Vision Systems: linking industrial cameras and Ethernet-enabled sensors.

Transportation & Logistics: Ethernet networking in trains, AGVs, or conveyor systems.

In short: An M12 D-coded connector is the standard for 100 Mbit/s or 1000Mbit/s Industrial Ethernet, providing a rugged and waterproof solution for data communication in automation and industrial networking.

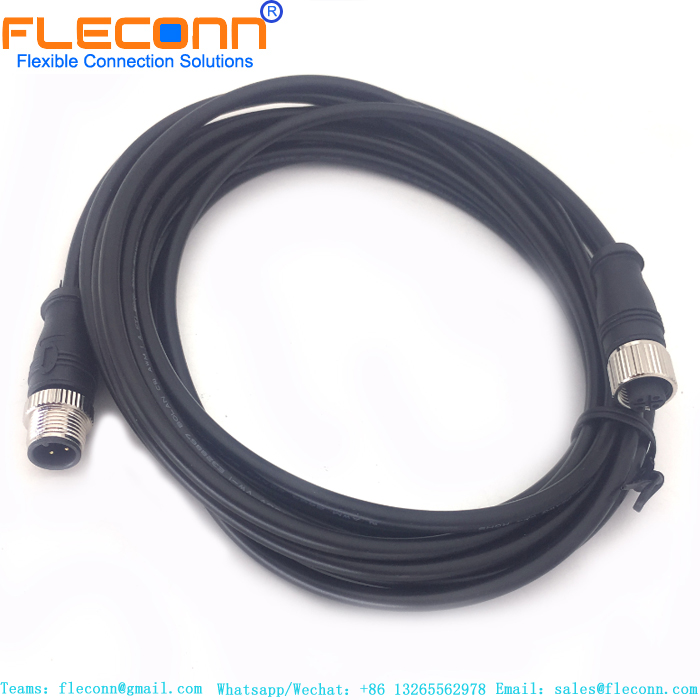

FLECONN can produce IP67/IP68 waterproof m12 d-coded connector cable, m12 d-code 4 pole male to female cable, m12 4 pin d-coded male to rj45 ethernet cable, m12 4 pin d-coded female to rj45 ethernet cable, m12 4 pin d-coded male/female to x-coded male/female Ethernet cable.

Previous : M12 Connector Introduction, Coding Types VS Applications

Next : Reliable Connectivity Starts Here — Fleconn’s JAE Connector Wire Harness Solutions

Fleconn M12 Ethernet Cable – Industrial-Grade Connectivity You Can Rely On

Dec .05.2025

In today's rapidly advancing industrial landscape, reliable data transmission is critical for automation, robotics, and intelligent manufacturing systems. The Fleconn M12 Ethernet Cable is engineered to deliver superior performance, durability, and stability in even the harshest industrial environments. As a trusted brand in industrial connectivity, Fleconn ensures every cable meets the highest standards for quality, safety, and longevity.

M12 8 Pin Cable – High-Density Connectivity for Advanced Industrial Applications

Nov .22.2025

Fleconn M12 8 Pin Cable provides reliable industrial connectivity with durable overmolded connectors, stable signal transmission, and strong EMI protection. Ideal for sensors, actuators, robotics, and automation systems, this high-quality cable offers multiple material options and customizable lengths. A trusted solution for robust M12 8-pin connections in harsh environments.women

M12 L-Coded Connector Cable

Nov .15.2025

FLECONN can produce overmolded m12 l-code 4 pin 5 pin male and female cables by customer requirements. They can completely replace other big brands of m12 l-coded cable assemblies.

High-Quality FC IDC Flat Ribbon Cable Assemblies – Reliable Connection for Compact Systems

Nov .11.2025

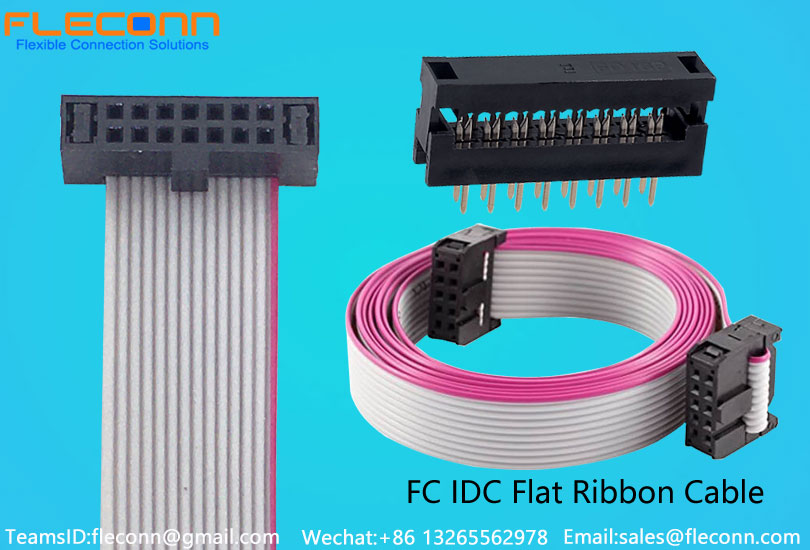

High-quality FC IDC Flat Ribbon Cable assemblies by Fleconn, featuring UL2651 cable, reliable IDC connectors, and customizable lengths for industrial and electronic applications.
